SPECIFICATIONS

Applicable Camera Specifications: Medium Frame DSLR Camera

Brand Name: MEKE

Electrified: No

Focal Length: 12mm

Focus Mode: MF

Focus Type: Standard Prime

Full Frame: Yes

High-concerned chemical: None

Launch Date: 2023

Lens Type: Manual

Number of Diaphragm Blades: 10 Blades

Origin: Mainland China

Scene Type: Wedding,Business,Human,Sports,Insect,Architecture,Special,Scenery,Still Life,Travel,People,Night Scene,starry sky,ORIGINALITY,Macro,Indoor

Type: Fixed Focus Lens

Use: Camera

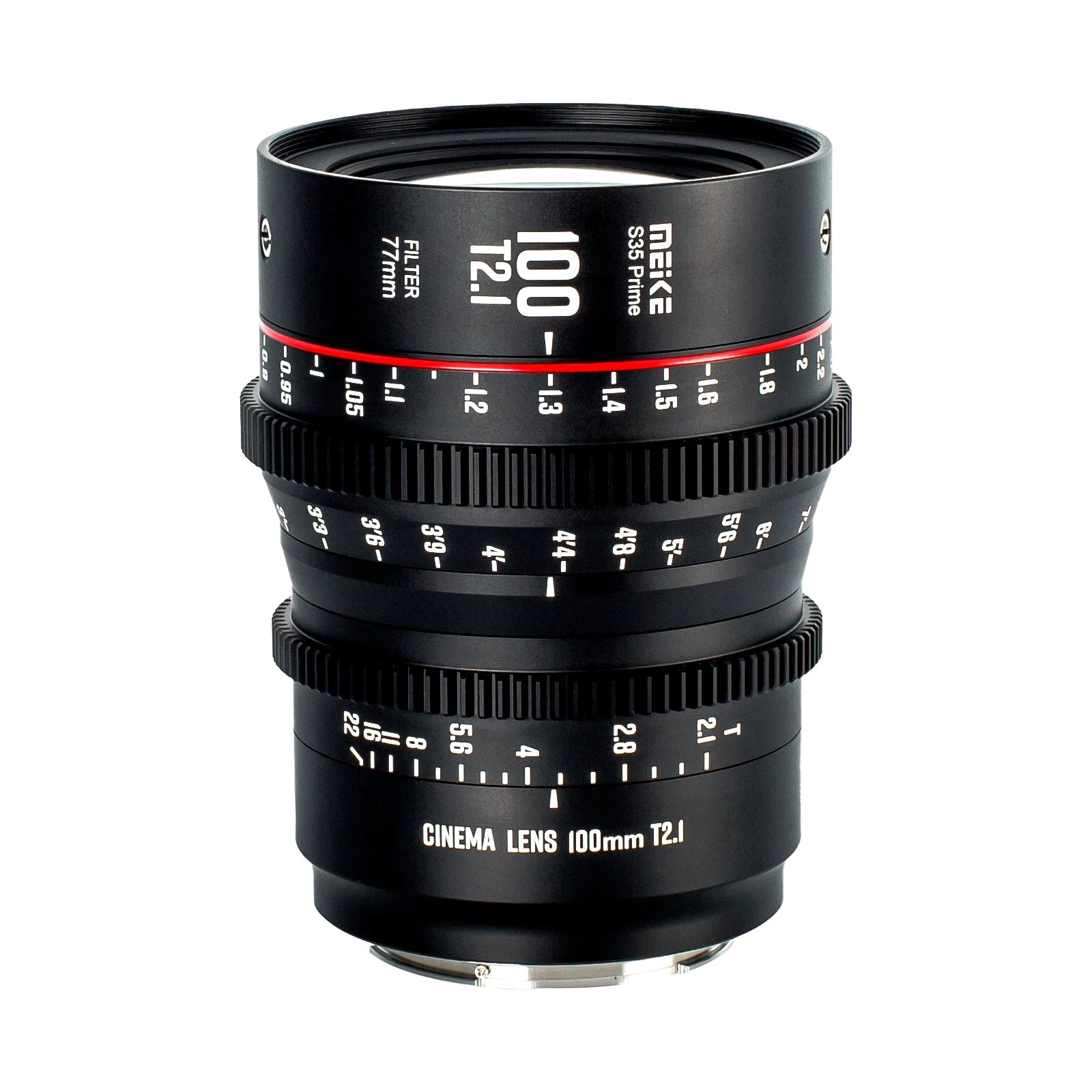

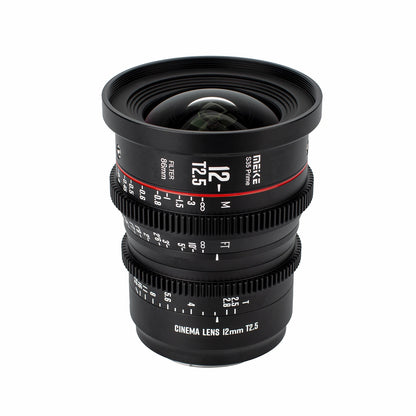

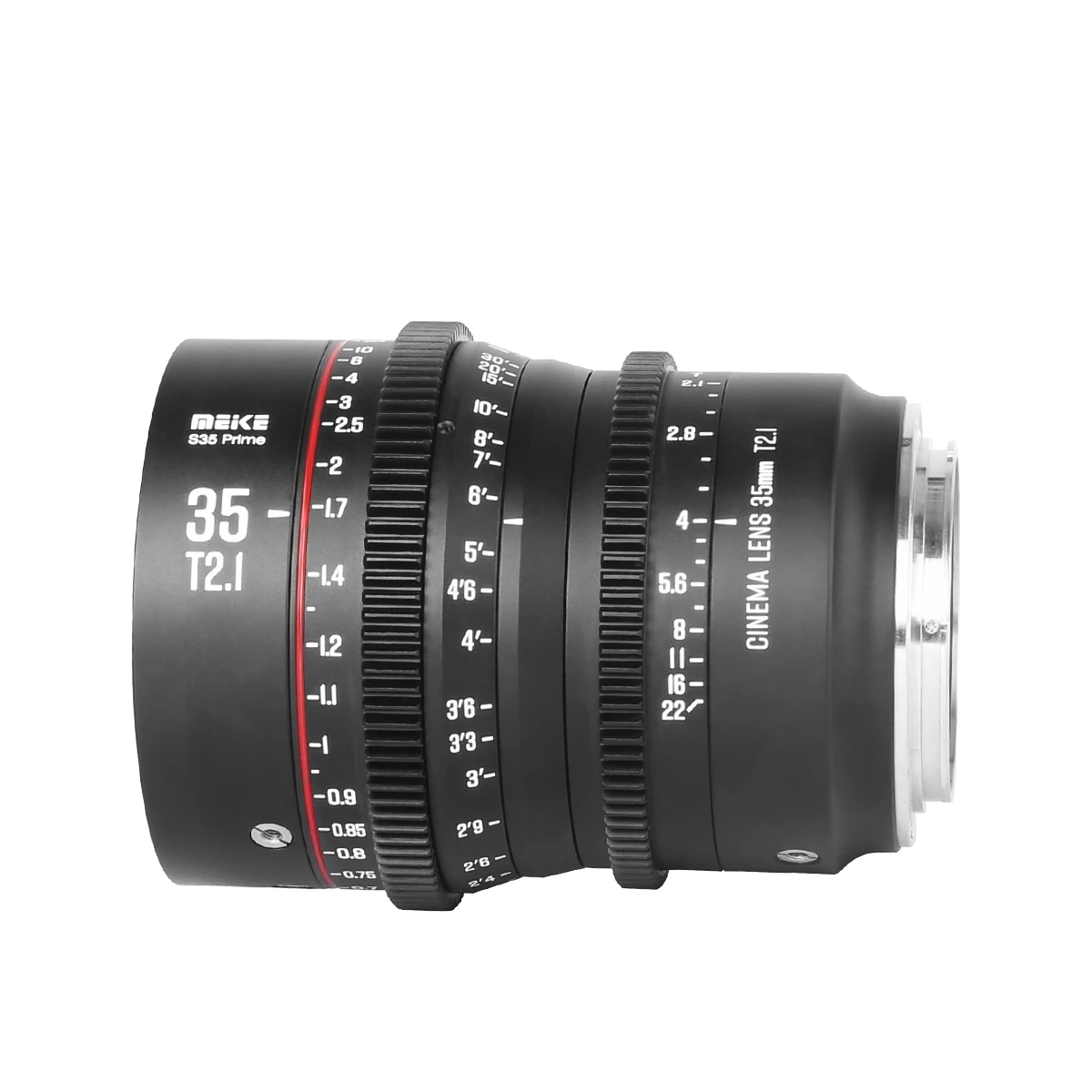

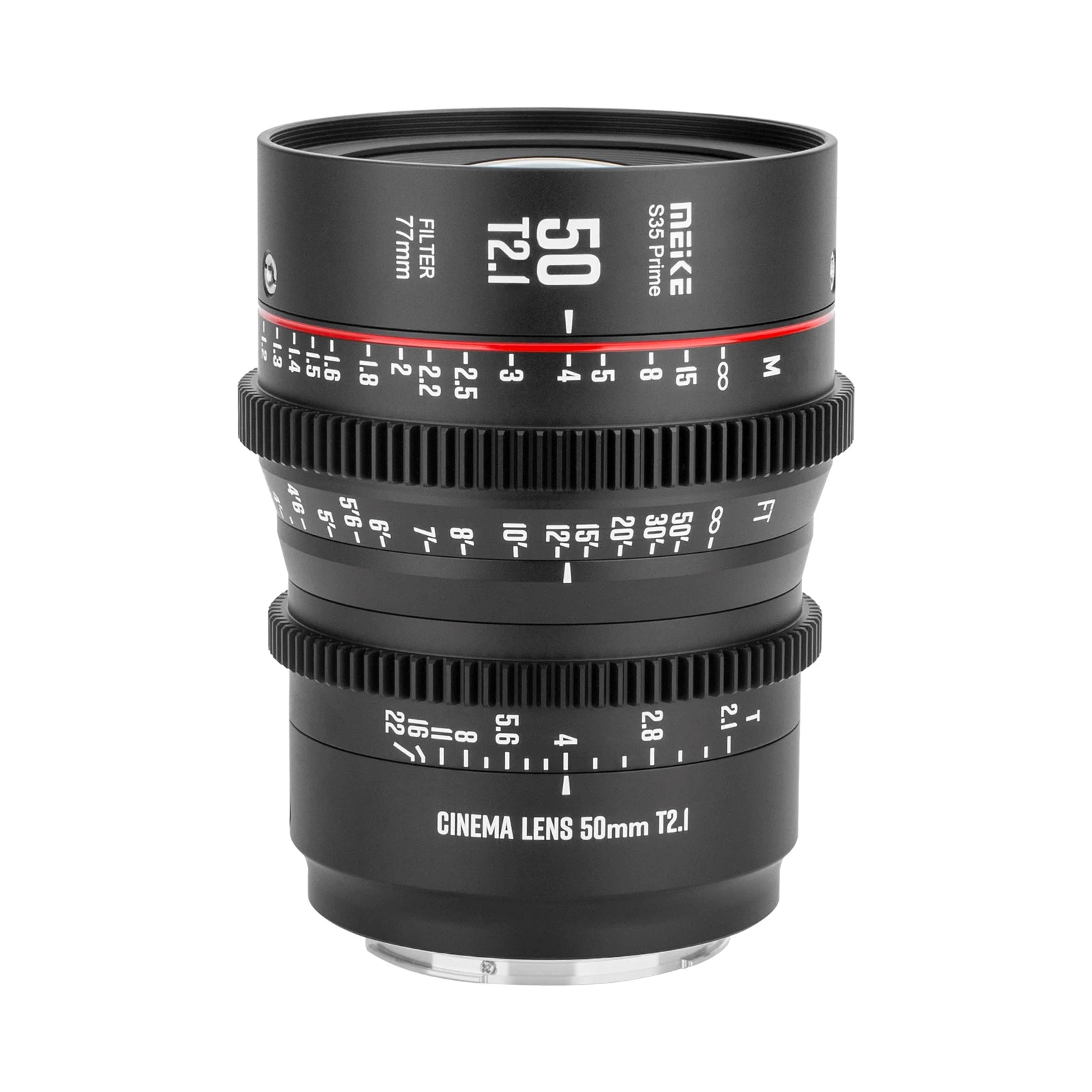

Meike Prime 12/18/25/35/50/75/100mm T2.1 Cine Lens for Super 35 Frame Cinema Camera System, such as RED Komodo, BMPCC 6K, BMPCC 6K Pro,Z CAM S6 and Canon C70 etc.

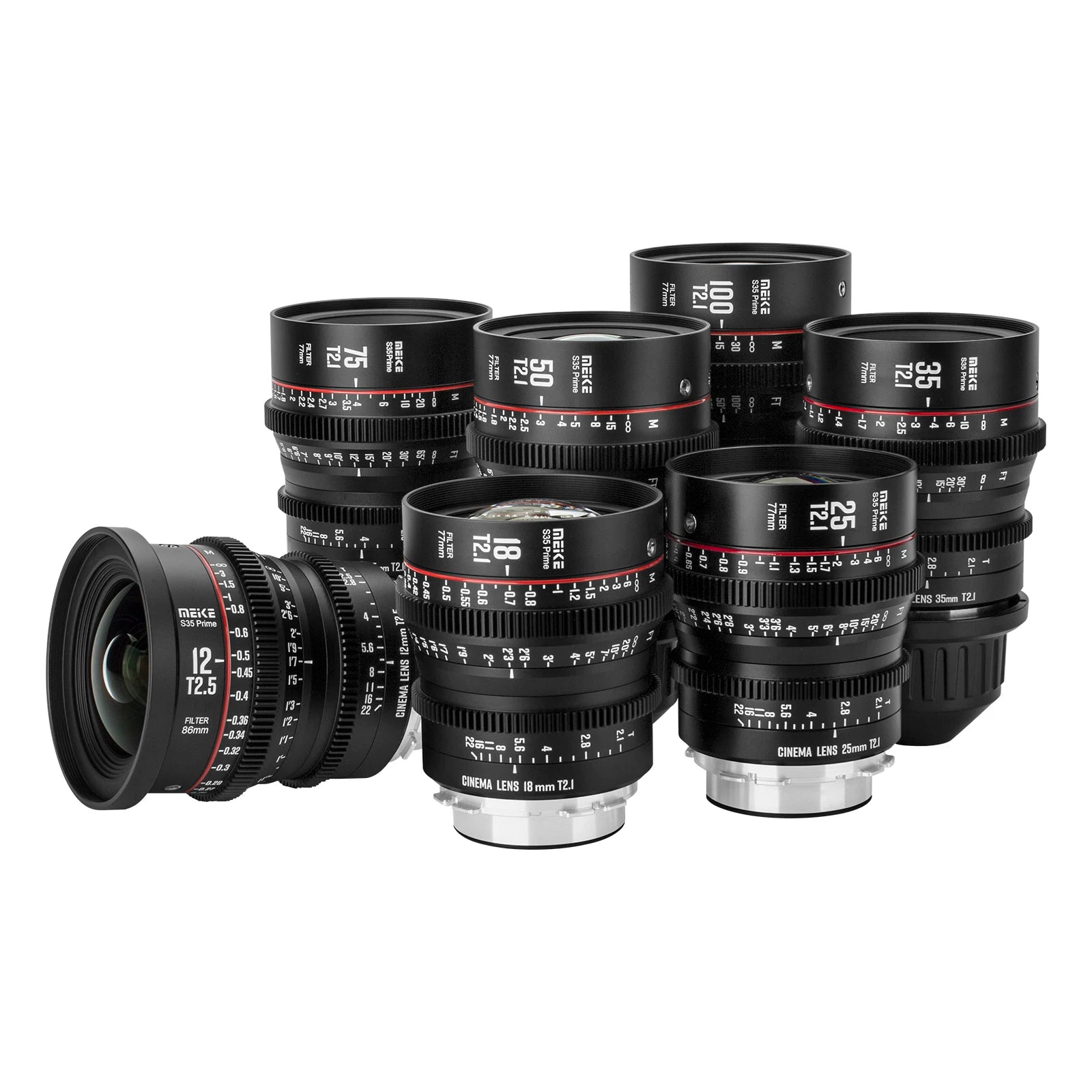

The complete set includes:

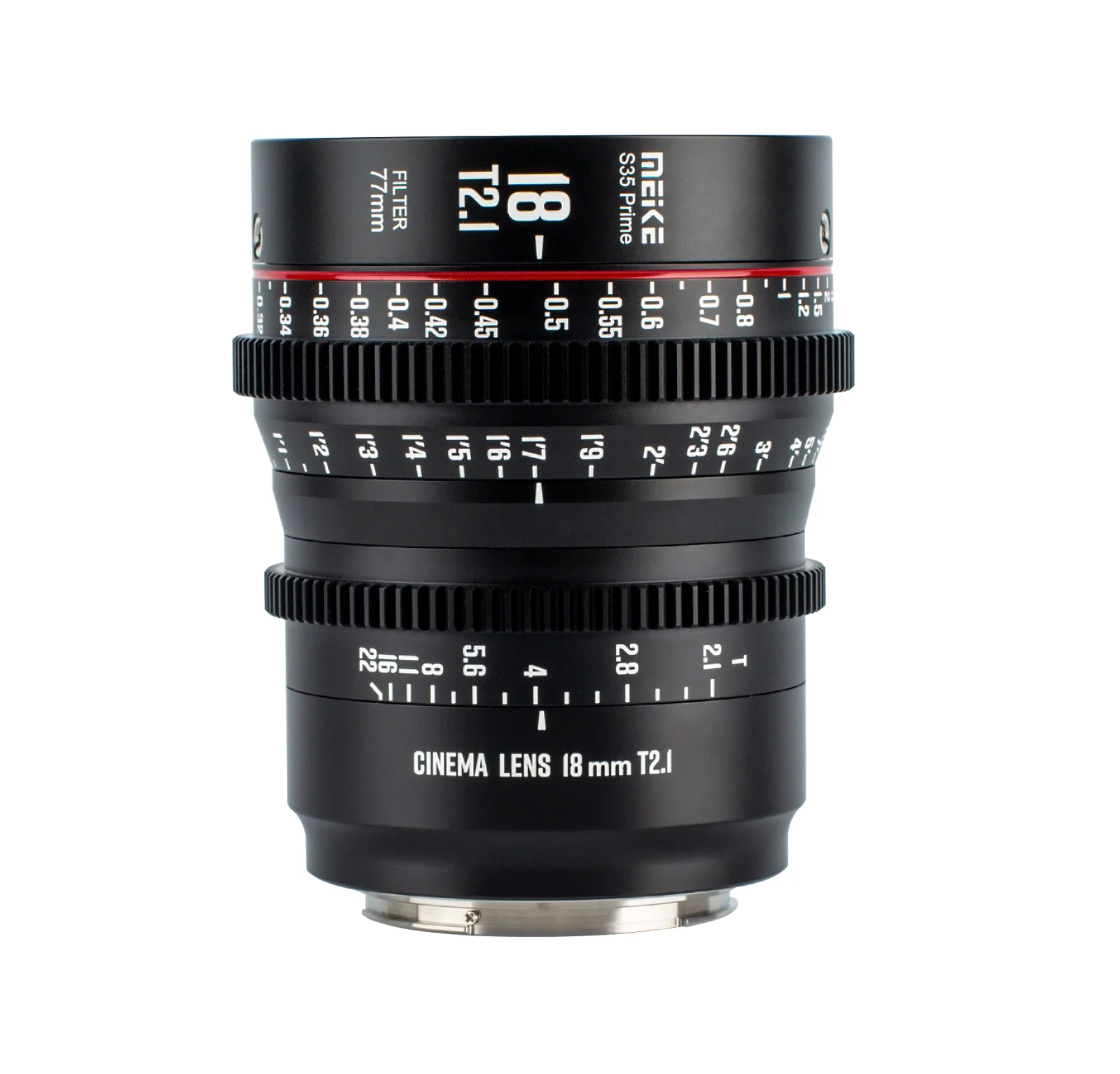

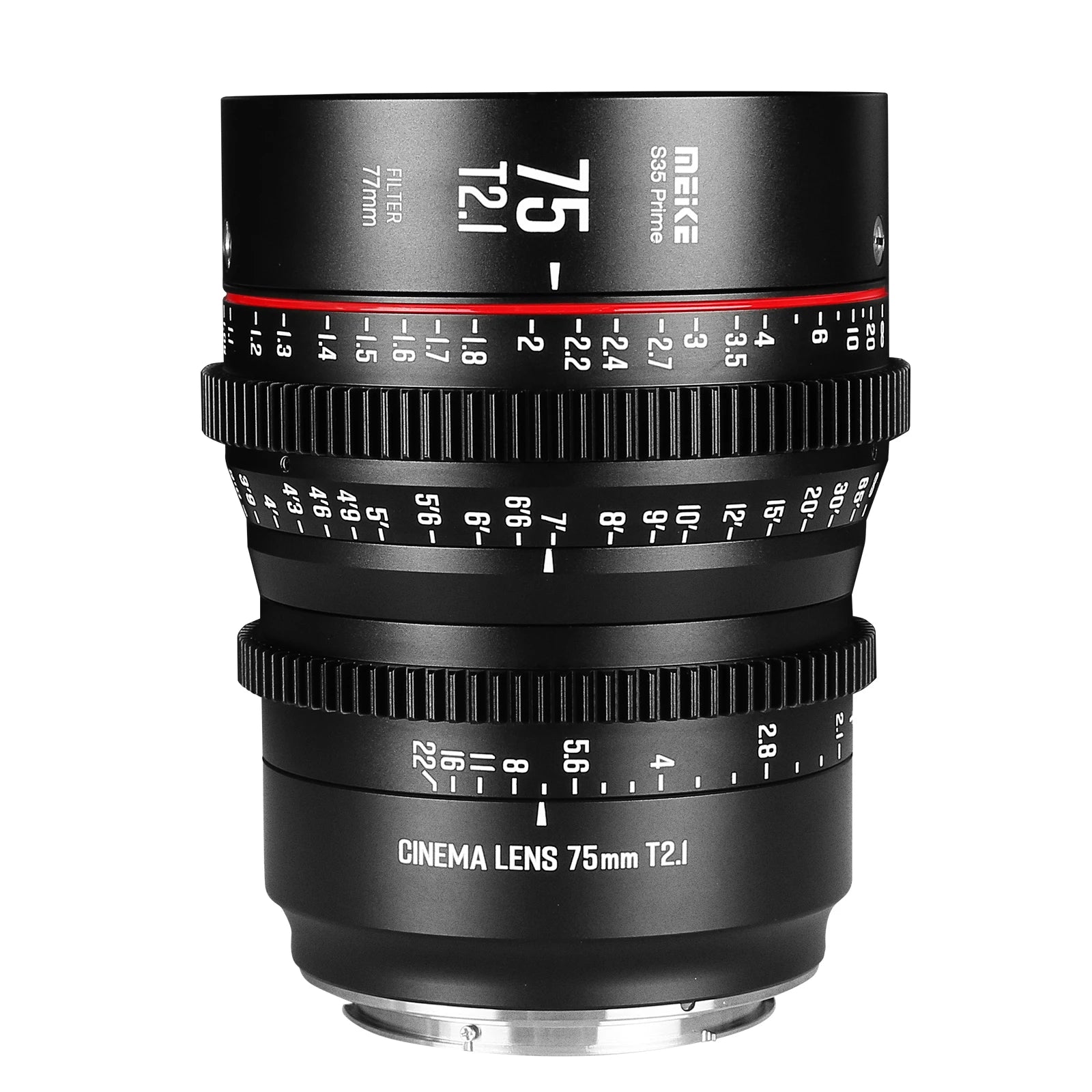

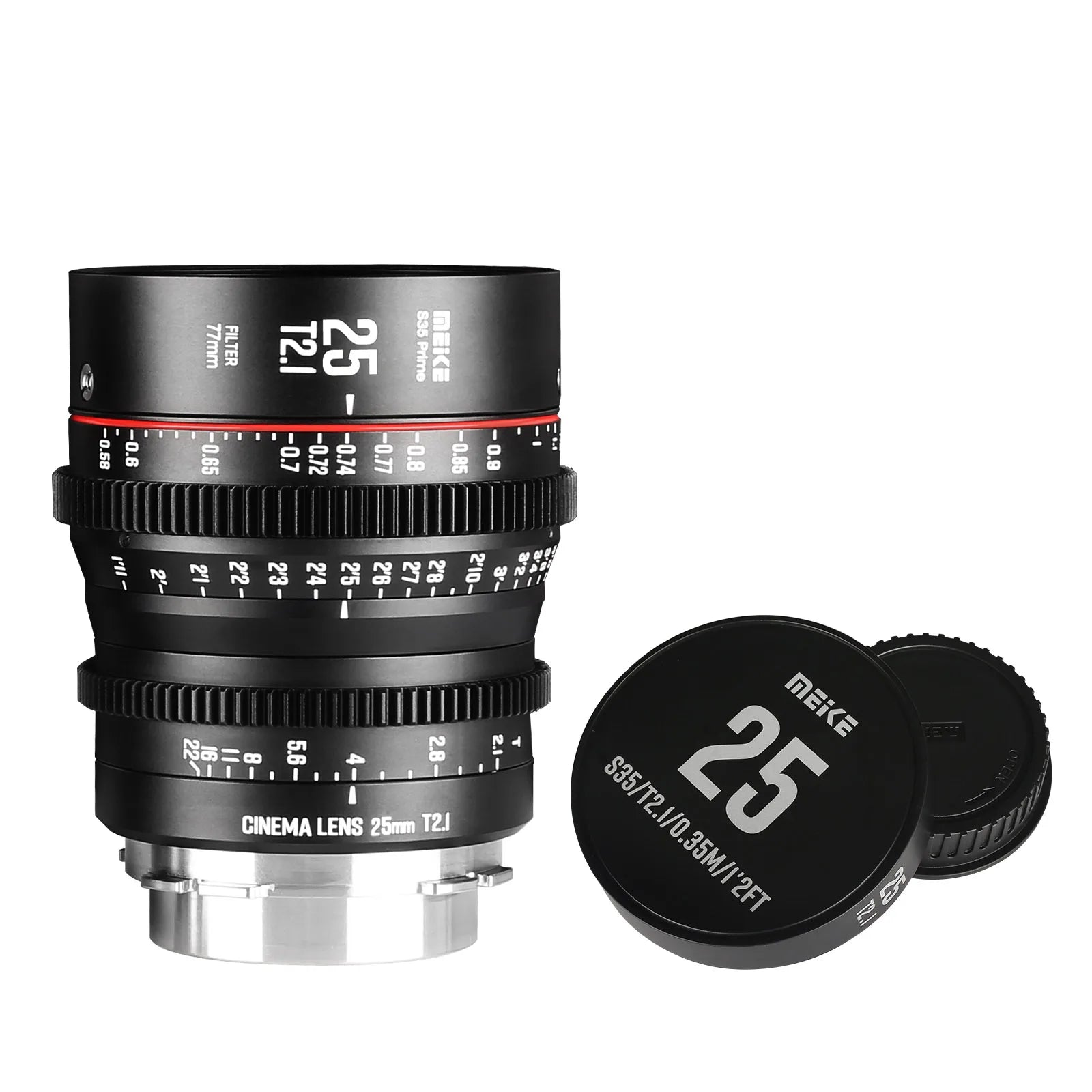

12mmT2.5,18mmT2.1,25mmT2.1,35mmT2.1,50mmT2.1,75mmT2.1,100mmT2.1

Compatibility( EF mount):

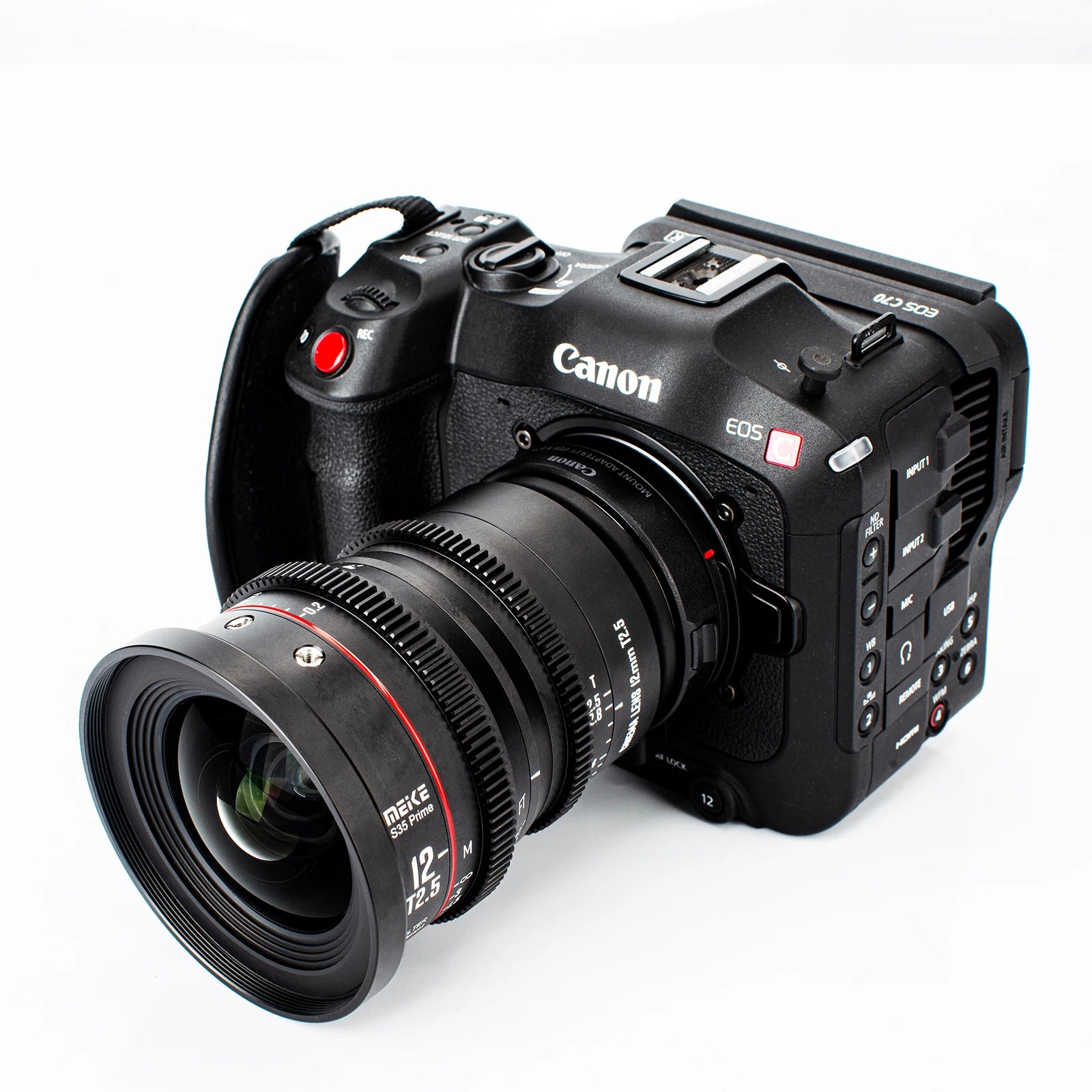

-  Canon EOS C100 Mark II, C200, C300 Mark II, C70

-  Z CAM: E2-S6 6K EF-Mount, E2-F6 EF, E2-F8 EF

-  BMPCC 6K, BMPCC 6K Pro, Blackmagic URSA Mini 4K EF

-  Panasonic AU-EVA1MC, VARICAM LT(AU-V35LT1MC)

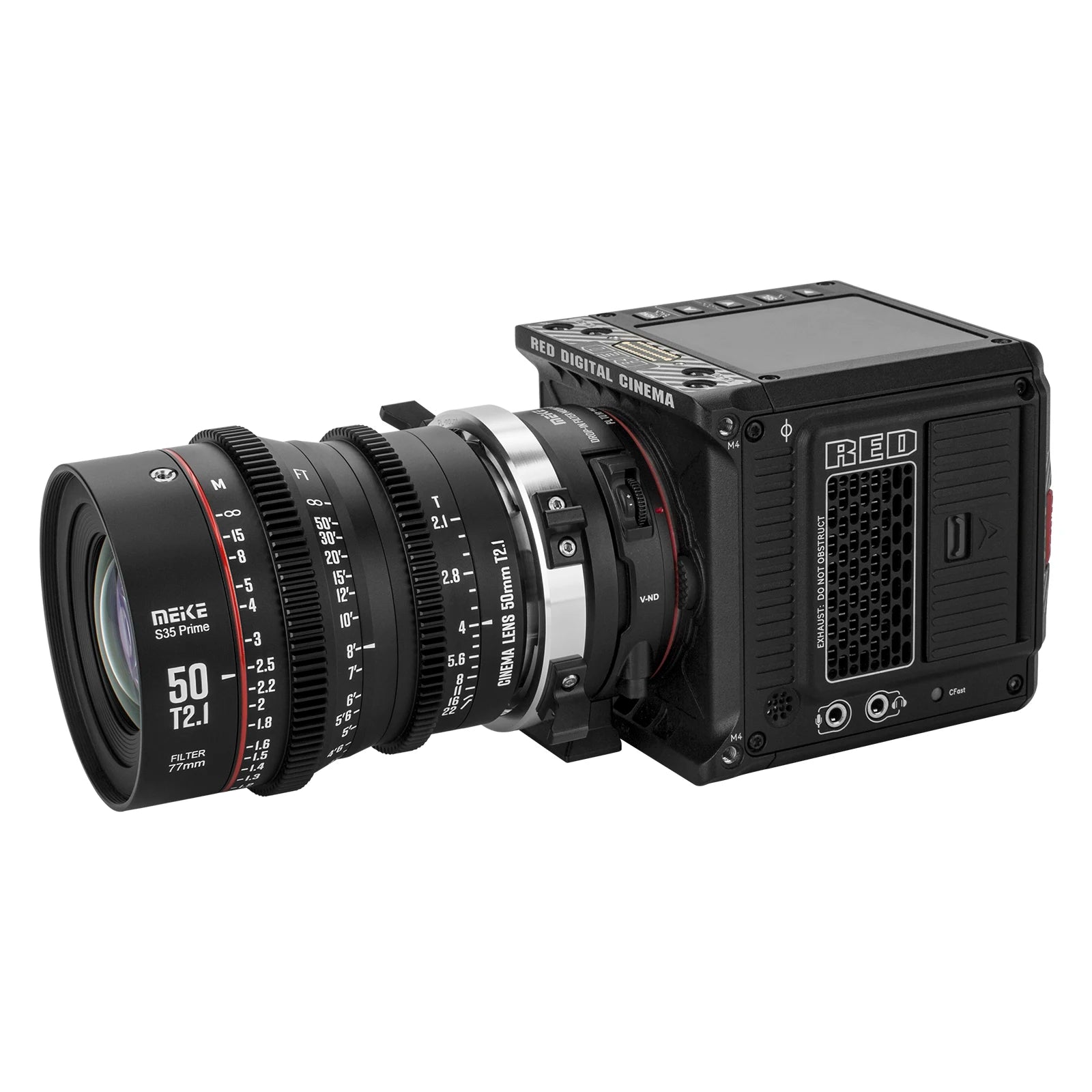

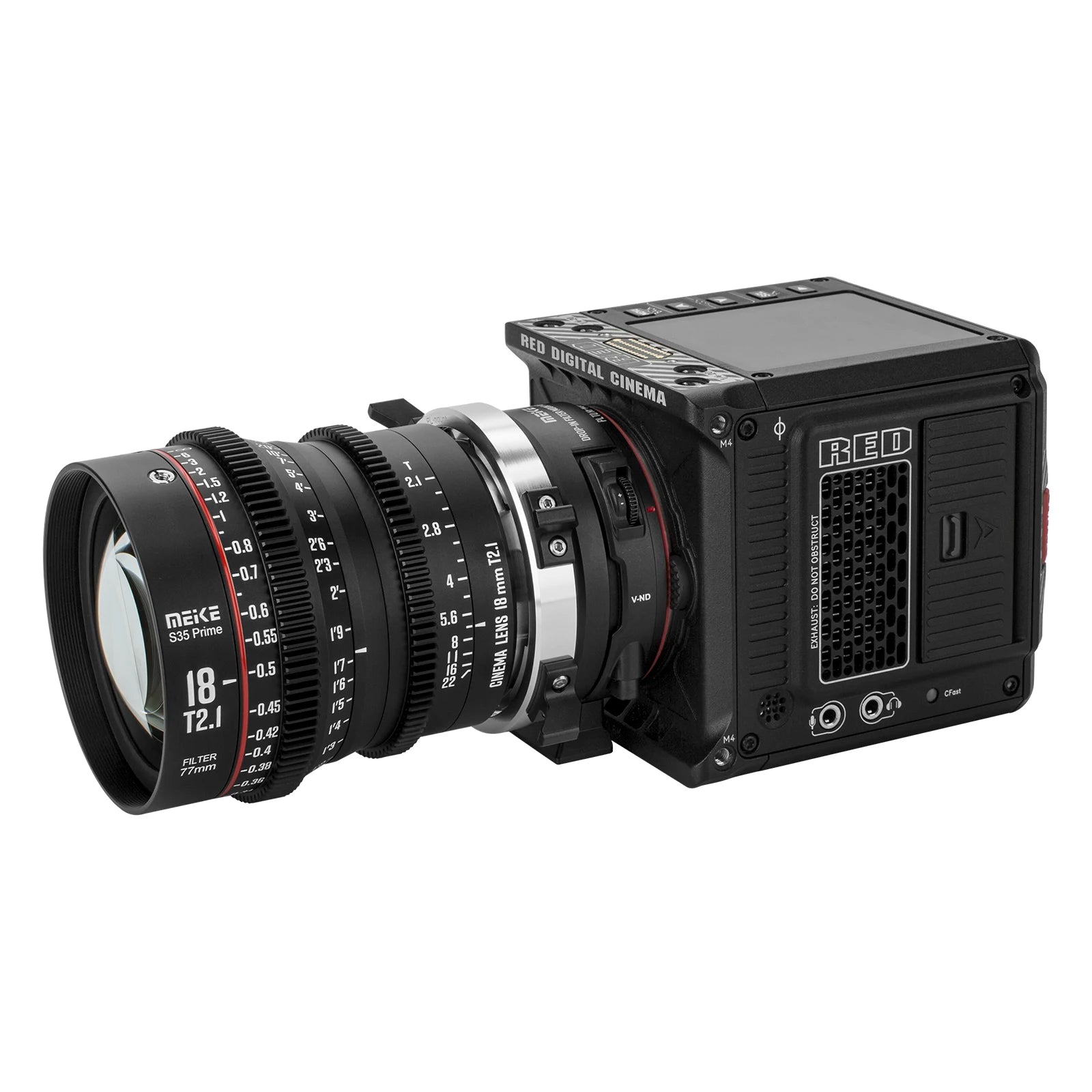

-  RED KOMODO 6K EF

 Compatibility( PL mount):

-  Canon EOS C700 PL, C700 PL GS

-  Z CAM: E2-S6 6K PL, E2-F6 PL, E2-F8 PL

-  ARRI Amira, Alexa Mini , Alexa SXT W.

-  Panasonic VariCam Pure, VariCam 35(AU-V35C1RMC)

-  Kinefinity Mavo 6k, Terra 4k, Terra 6k

-  RED KOMODO 6K PL

Manual focus: Enable your camera 'release without lens' to let the lens work with your camera.

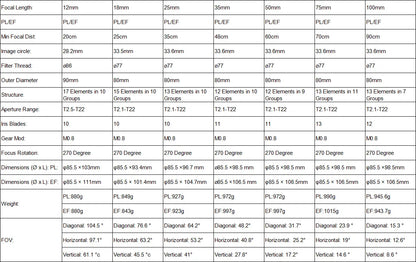

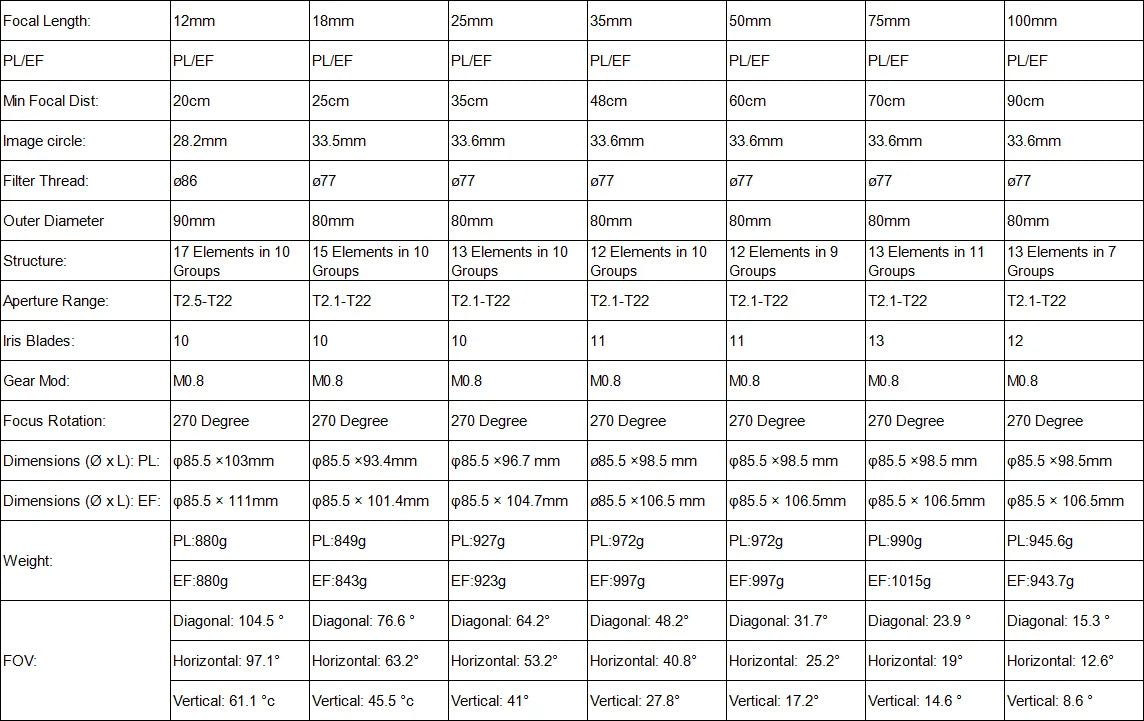

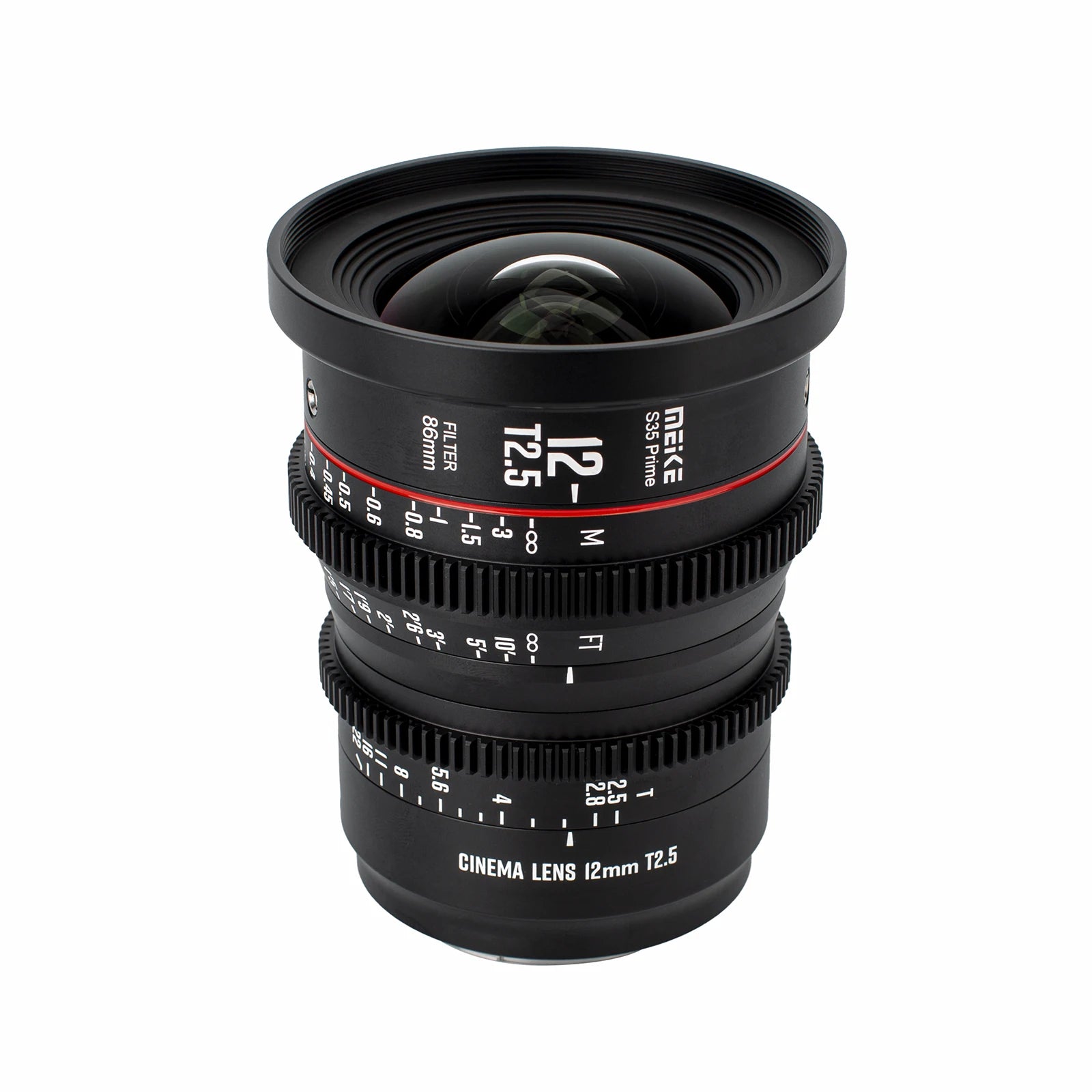

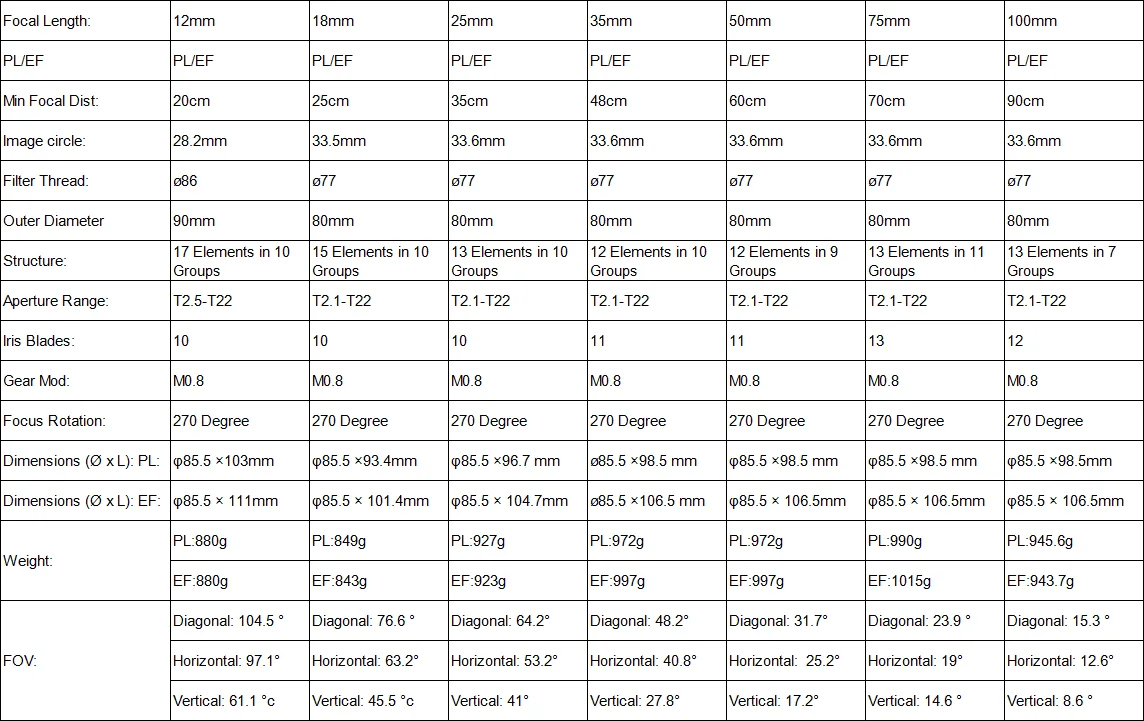

Lens Mount: PL/EF

Min Focal Dist: 20cm

Image circle: 28.2mm

Filter Thread: ø86

Outer Diameter：90mm

Structure: 17 Elements in 10 Groups

Focal Length: 12mm

Aperture Range: T2.5-T22

Iris Blades: 10

Gear Mod: M0.8

Focus Rotation: 270 Degree

Dimensions (Ø x L):

PL: φ85.5 ×103mm

EF: φ85.5 × 111mm

Weight:

PL: 880g

EF:880g

FOV:

Diagonal: 104.5 °

Horizontal: 97.1°

Vertical: 61.1 °c

All-metal lens body design:

Multi-layer coating
With higher transmittance and effective suppression of stray light, the lens is compact and robust yet light enough to smoothly capture high quality images.

Bold Gear and Easy Aperture Control

The bold gears are provided for cinematographers/photographers to adjust focus and aperture ring precisely and optimize the depth of view and bokeh effect.
Both the focus ring and the aperture ring are textured design, which is convenient for cinematographers to hold.
